Mono-crystalline solar cells with 3BB / 4BB, high efficiency mono solar cells 6inch in stock for cheap sale
Product Specification
6'' Mono-Crystalline Silicon Solar Cell (3BB) | |
Physical Characteristics | |
Dimensions | 156x156 mm |
Diagonal | 220 mm |
Cell Thickness | 180/200 ± 20μm |
Front | Anisotropically texturized surface and dark silicon nitride anti-reflection coatings |
3x1.5mm silver busbar | |
Back | Full-surface aluminum back-surface field |
3x2.1mm (silver/aluminum) discontinuous soldering pads |
Electrical Characteristics | ||||||
Efficiency code | Efficiency Eff(%) | Power Pmax(W) | Max.Power Current Ipm(A) | Short Circuit Current Isc(A) | Max.Power Voltage Vpm(V) | Open Circuit Voltage Voc(V) |
1940 | 19.40 | 4.636 | 8.490 | 9.029 | 0.546 | 0.645 |
1930 | 19.30 | 4.612 | 8.462 | 9.001 | 0.545 | 0.645 |
1920 | 19.20 | 4.588 | 8.434 | 8.976 | 0.544 | 0.644 |
1910 | 19.10 | 4.564 | 8.405 | 8.953 | 0.543 | 0.643 |
1900 | 19.00 | 4.540 | 8.376 | 8.925 | 0.542 | 0.642 |
1890 | 18.90 | 4.516 | 8.332 | 8.897 | 0.542 | 0.642 |
1880 | 18.80 | 4.492 | 8.304 | 8.865 | 0.541 | 0.641 |
1860 | 18.60 | 4.444 | 8.231 | 8.842 | 0.540 | 0.640 |
1840 | 18.40 | 4.397 | 8.157 | 8.814 | 0.539 | 0.638 |
*Data under standard testing conditions (STC) : 1,000W/M² . AM1.5, 25°C.
Conductor Patterns

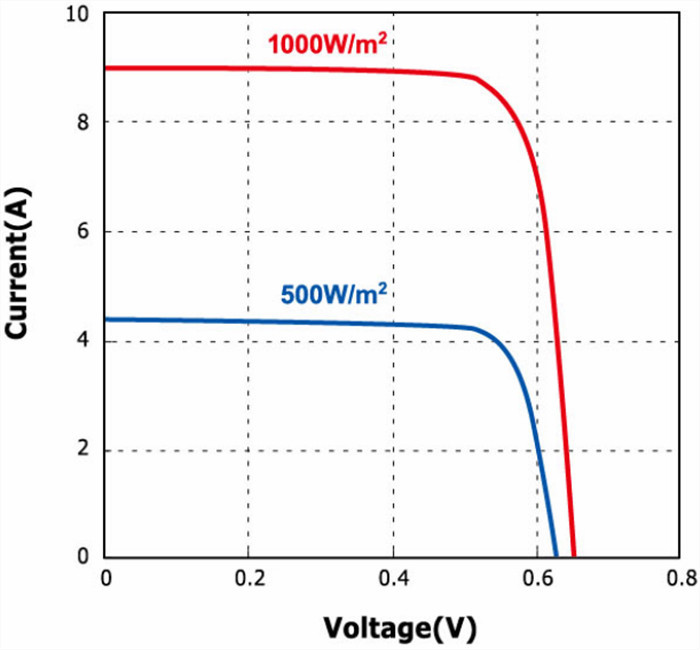

Typical I-V Curve

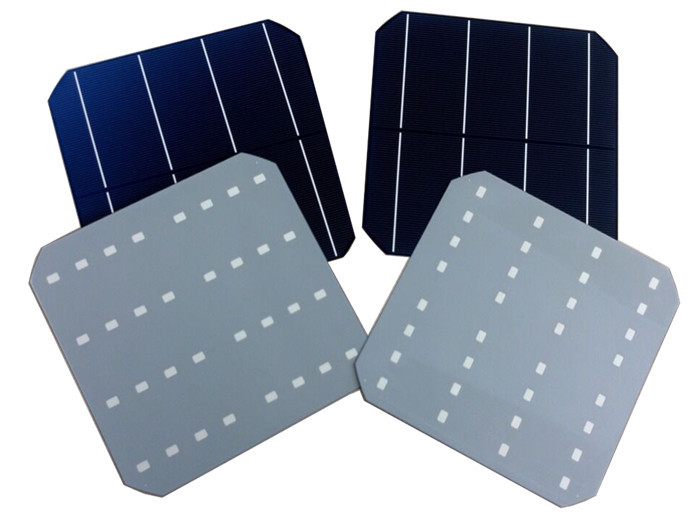

Cell Picture
How Solar Cell Works?
Our Parterner
Products Features
Production and Quality Control
Why do you buy solar cell from us?
FREQUENTLY ASKED QUESTIONS
Shipping
1. Shipment shall be made only after Payment is received.
2. Please do inform us your DETAILED ADDRESS before shipment.
3. Shipment shall be made in three working days.
4. Shipment shall be via EMS, DHL, Fedex,UPS etc.
![]() |
