Flexible solar panel 10w to 200w; Foldable solar panel 60w to 240w (2f&3f); Crystalline silicon solar panel 3w to 350w; OEM, OBM & ODM are availabel.
10 Years
| Ask Lasest Price | |
| Brand Name : | Sunsou |
| Model Number : | GS-F150W |
| Price : | Get Latest Price |
| Delivery Time : | 7 days after receipt the bank slip |
| Payment Terms : | TT, Western Union, Money Gram |
| Supply Ability : | 100000W/Month |
150w portable flexible solar panel, solar panel bendable, semi flexible solar panel cheap price
Main Features:
1. Semi flexible: Bending angle up to 30 -90 degrees
2. Durable with TPT backsheet, no glass
3. Light weight for easy carrying
4. The thickness only 3mm, easy joint to your yacht or RV roof
5. Rounding corners to prevent hand from being scratched
6. High efficiency mono crystalline solar panel
| Model number | GS-F150W |
| Peak power / Pm(W) | 150±3% |
| Open circuit voltage / Voc(V) | 24 |
| Max. power voltage / Vmp(V) | 20 |
| Max. power current / Imp(A) | 7.5 |
| Short circuit current / Isc(A) | 8.1 |
| Solar cells efficiency | around 22.00% |
| Solar cells origin | / |
| Dimensions(L*W*T) / Weight(kgs) | 1082*796*3.0mm(NOT including the thickness of junction box) |
| Solar cell / No. of cells and connections | 125 solar cells / 6*24pcs-cell in series. |
| Encapsulation | PET laminated. |
| Frame | NO |
| Junction box protection degree | ≥IP65; on the back side of the panel. |
| Standard Testing Conditions | Irradiance:1000W/m2, Cell temperature:25ºC, AM:1.5(air mass). |
| Max. series fuse rating (A) | 8A |
| Max. system voltage (V) | 1000Vdc |
| Application Class | Class A |
| NOCT | 45±2ºC |
| Operating temperature range | -40ºC- +85ºC |
| Power temperature coefficient | -0.45%/ºC |
| Current temperature coefficient | 0.08%/ºC |
| Voltage temperature coefficient | -0.37%/ºC |
| Lifespan | ≥10 years |
| Product Certifications / Standards | CE, IEC61215 |
| Other Certifications | ISO9001:2008, RoHS |

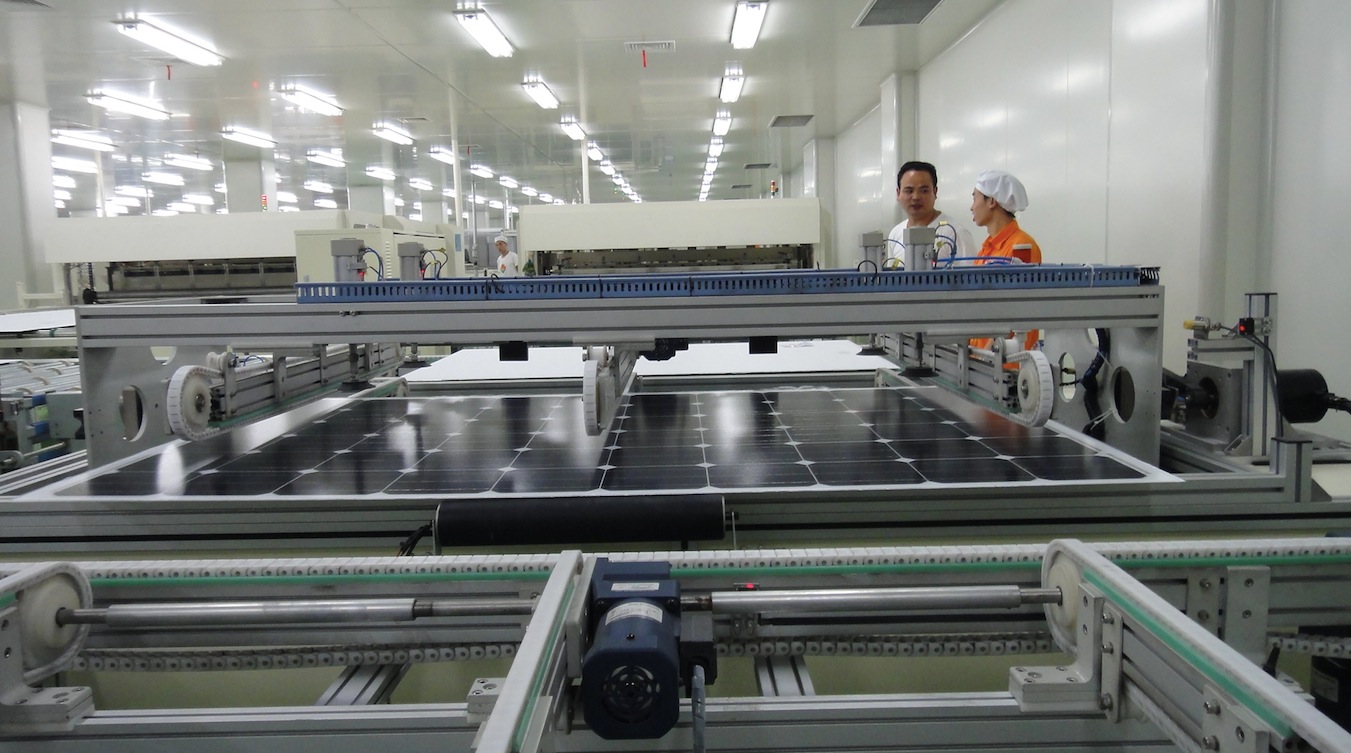

Picture show:
Shipping & Payment:
1. Payment term: T/T in advance (W/U for sample order)
2. Lead time: It depends on your quantity. Usually we will send
sample within 5-7 working days.
3. Shipping will be made via EMS, DHL, Fedex, UPS etc.
|
|
