Flexible solar panel 10w to 200w; Foldable solar panel 60w to 240w (2f&3f); Crystalline silicon solar panel 3w to 350w; OEM, OBM & ODM are availabel.
10 Years
| Ask Lasest Price | |
| Brand Name : | Sunsou |
| Model Number : | GS-M270W |
| Price : | Get Latest Price |
| Delivery Time : | 10 days |
| Payment Terms : | TT, Western Union, Money Gram |
| Supply Ability : | 30000/month |
270w to 350w mono solar panel, pv solar module, price solar panel mono-crystalline A grade for cheap sale
1.Solar Panel Descprition:
GS-M270W solar panel is connected in series by 60 pieces of 156mm×156mm Mono Crystalline silicon cells. Solar panel performance is produced according to international quality standard.

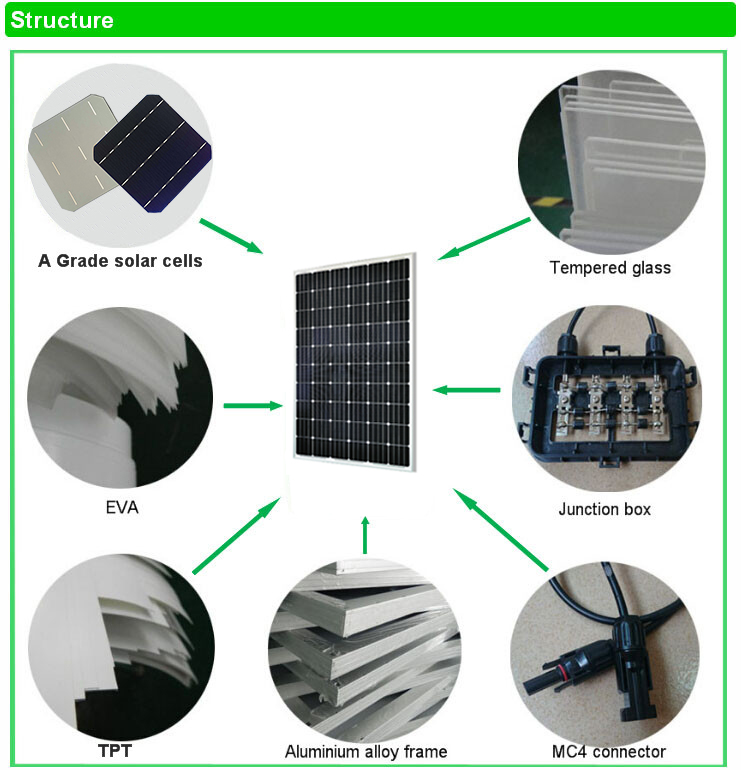

2.Solar Panel Characteristics:
1)Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2)High efficiency crystalline silicon solar cells
3)High transmission Iow iron tempered glass, strong mechanical resistance
4)Anti-ageing EVA and excellent anti-climate back sheet
5)Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6)Standard waterproof junction box
7)High endurance to different weather
8)Good and friendly package with less transportation and storage space.
3.Solar Panel Warranty:
1)10 years workmanship warranty
2)10 years warranty at 90% power output
3)Further 25 years warranty at 80% power output
4.Solar Panel Electric Characteristics:
| CELL TYPE | 156 X 156 MONO SOLAR CELL | |||||||
| Nominal Power Watt Pmax(Wp) | 270W | 275W | 280W | 285W | 290W | 295W | 300W | 305W |
| Power Output Tolerance Pmax(%) | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 |
| Maximum Power Voltage Vmax(V) | 36.00 | 36.2 | 36.50 | 36.60 | 36.80 | 37.00 | 37.20 | 37.50 |
| Maximum Power Current Impp(A) | 7.50 | 7.60 | 7.67 | 7.78 | 7.88 | 7.97 | 8.06 | 8.13 |
| Open Circuit Voltage Voc(V) | 44.39 | 44.64 | 45.01 | 45.38 | 45.77 | 46.00 | 46.19 | 46.26 |
| Short Circuit Current Isc(A) | 8.33 | 8.44 | 8.52 | 8.56 | 8.59 | 8.62 | 8.66 | 8.73 |
| Module Efficiency ηm(%) | 13.91 | 14.17 | 14.42 | 14.68 | 14.94 | 15.20 | 15.45 | 15.71 |
| Cell Efficiency ηc(%) | 16.01 | 16.34 | 16.68 | 17.01 | 17.34 | 17.68 | 18.01 | 18.35 |
Payment & Shipping:
| Payment Terms | T/T | EXW | 50% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR(C&F) | |||
| CIF | |||
| West Union | Amount lower than 5000usd | ||
| Money Gram | |||
| Delivery time | 10 working days after receiving payment for one container | ||
>: Shipping will be made via EMS, DHL, Fedex, UPS etc.
|
|
